Description
FEATURES:
- Routine Check Mode & Continuous Monitoring Mode
- Sync with PC based Software (WinXP and WinVista)
- Display: 1.8″ Colour TFT
- Resolution: 160 x 96
- Display Mode: Display Direction adjustable
- Indicator: Power indicator, Alarm Sound, Pulse tone
- Interface: Socket for connecting SPO2 sensors and Socket for communication cables
- Power Supply: 2 AA size Batteries DC 3 V, <60MA
- Record: Data can recorded up to 24 hours
- Alarm: Adjustable High and Low limits
SPECIFICATIONS:

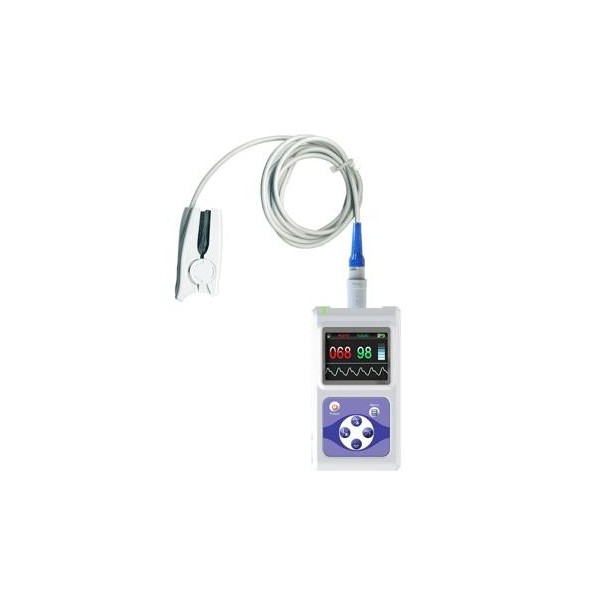

| MODEL: | CMS-60D |
| DIMENSIONS: | 92MM (W) X 82MM (H) X 22mm (D) |
| WEIGHT: | 136g |
| DISPLAY FORMAT: | 1.8″ colour TFT |
| RESOLUTION: | 160 x 96 |
| OPERATION ENVIRONMENT:
TEMPERATURE: HUMIDITY: |
0ºC – 40 ºC
15% – 95% |
| STORAGE ENVIRONMENT:
TEMPERATURE: HUMIDITY: |
-20ºC – 60 ºC 10% – 95% |
| PATIENT RANGE | Neonate, Pediatric and Adult |
| SP02:
MEASUREMENT RANGE: RESOLUTION: ACCURACY:
ALARM RANGE: REFRESHING RATE:
PULSE RATE: MEASUREMENT RANGE: RESOLUTION: ACCURACY: ALARM RANGE: REFRESHING RATE: |
0 – 100% 1% (2%)70 – 100% (Adult & Pediatric) (3%) 70 – 100% (Neonate) 0% – 69% unspecified 0% – 100% 1 s
25 – 250BPM 1BPM 3PBM (NON MOTION) 25 – 250BPM 1 s |
| QUALITY APPROVAL | CE |
